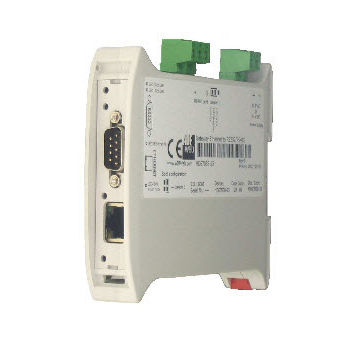

Ethernet converter HD67038-25-B2RS232RS-485DIN rail
Add to favorites
Compare this product
Characteristics
- Bus
- Ethernet, RS232, RS-485
- Other characteristics
- DIN rail
Description
Ports: - 1xEthernet; 1xRS232; 1xRS45
Ethernet Connector - RJ45
RS232 Connector - D-Sub connector, type DE-9 Male
RS485 Connector - 3way 5mm terminal block
Data Rates Serial - Up to 115200 bps
Data Rates Ethernet: - 10/100 Base-T Autosensing
Power supply connector - 2way 5mm terminal block
Power supply - 8…24V AC; 12…35V DC
Operating temperature - -40°C/+85°C (-40°F/+185°F)
Dimensions - 71x60x95 mm(DxWxH)
Weight - 200g approx
Mechanical fixing - DIN Rail montage
Software - SW67038
