Specifications:
Ports: 1xCAN; 1xUSB; 2xOptic Fibers
Data Rates CAN Up to 1Mbps
CAN connector 3way 5mm fixed screw terminal
Optic Fiber connector SFP
Power supply 9…19V AC; 12…35V DC
Operating temperature -40°C/+85°C (-40°F/+185°F)
Dimensions 71x60x95 (DxWxH)
Weight 200g approx
Mechanical fixing DIN Rail montage
Software SW67701

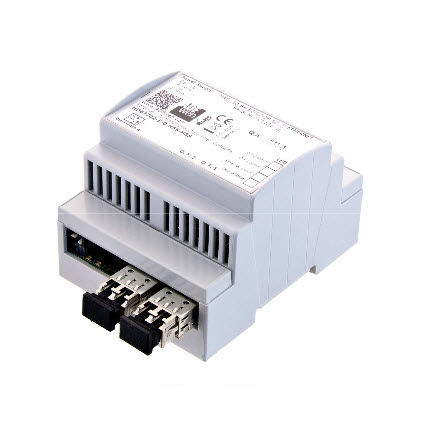

ORDER CODE: HD67701-C-0-H5S
