DC/DC power supply ADLPS35-150-12

filteredwith overcurrent protectionrobust

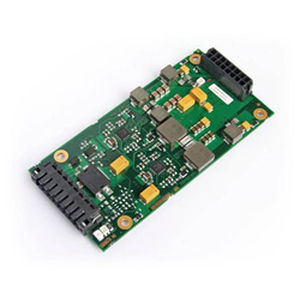

The ADLPS35-150 power supply board is designed to meet the needs of industrial and embedded motherboards by providing robust ATX voltages (5V, 5VS, 3.3V, 12V) in a small form factor power supply designed for -40C to +85C operation. Its small 2”x4” size (50mm x 102mm) allows it to fit many space limited applications. As well, the ADLPS35-150 is tailored to sit sideby-side with our 3.5-inch product line of motherboards and can also be adapted to a PC/104 stack via an optional mounting plate. The power supply features ATX compliant signaling to allow ACPI/APM power management from within compliant operating systems. At 150 Watts total power and just 50mm x 102mm in size, this small and rugged power supply will fit into most embedded applications. The ADLPS35-150 is available in two variants, one allowing an input voltage range of 7-36V but providing only the 5V, 5VS, and 3.3V outputs, the other with a narrower input voltage range of 14-36V but providing 5V, 5VS, 3.3V and 12V outputs. The board is protected against many types of input power anomalies, such as over-currents, voltage deviations and voltage surge. Short bursts of over-current are simply filtered out. Should overvoltage or under voltage situation persist too long, the power supply shuts off. Noise interference is dampened by up to 35dB. The output is protected against reverse voltage and short-circuit.
