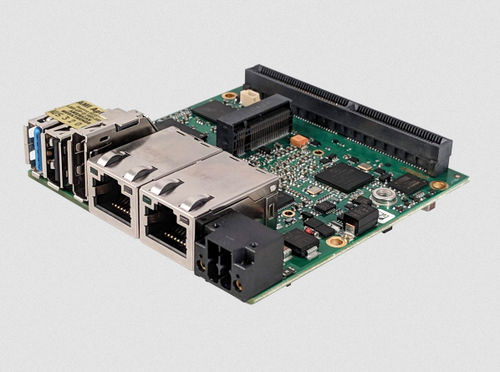

Intel® Atom E3900 single-board computer ADLE3900SEC

3.5"SATAUSB 2.0

Measuring just 75mm x 75mm, the ADLE3900SEC is an embedded SBC specially optimized for Size, Weight, and Power (SWAP) applications. Based on the E3900 series Intel Atom™ SoC, this tiny board delivers maximum performance in the smallest possible size. It features low-power quad and dual core Atom processors with integrated Intel HD Graphics engine capable of DisplayPort video output = 4K resolution at 60 Hz. The ADLE3900SEC is rated for -40C to 85C operation with rugged options available including chamber testing, underfill, bonding, and conformal coating. About Edge-Connect Architecture Via the backside board-edge connector, additional I/O can easily be made accessible using standard and customer-specific breakout boards. Provides easy expansion and helps reduce cabling, integration time and system size all while increasing quality and overall MTBF. Connecting to sensors, cameras and storage is easy with a full range of onboard I/O: 2x Gigabit LAN, 1x USB 3.0, 1x USB 2.0, 2x PCie, and SATA. The Intel HD Graphics engine supports video output in either HDMI or Display Port format. An onboard M.2 socket allows users to install the fastest Solid State storage solutions on the market. Extended Temperature Ratings and hard-mounted Edge-Connect design make the ADLE3900SEC ideal for rugged embedded applications. Product Features Compact 75mm x 75mm Footprint Low power Intel E3900-Series Atom® processors (formerly codenamed Apollo Lake) 4K resolution at 60 Hz of DisplayPort video output 15 Year Availability Rugged, Soldered 4GB DDR4 Memory Option: -40C to 85C Screening Industrial-grade Power Galvanic Isolation
