COM Express carrier board Express-BASE6 R3.1

ATX

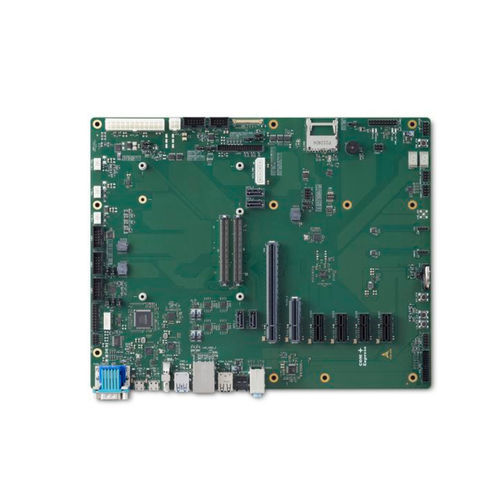

Express-BASE6 R3.1 is an ATX COM-Express Type 6 Basic / Compact size module reference carrier board based on PICMG COM-Express Revision 3.1. Together with the COM-Express Type 6 module of your choice and off the shelf add-on cards, you can quickly emulate the functionality of your desired end product for software development and hardware verification. Note: PCIe Gen4 x16, 2.5GbE, and USB4 support is subject to the module and carrier used. Specifications: PICMG COM-HPC Revision 3.1 Supports COM-Express Type 6 modules Basic / Compact size 1x PCIe Gen4 x16, 1x PCIe x4, 4x PCIe x1 2x USB4 HDMI, VGA, LVDS, and optional eDP 4x USB 3.x/2.x, 2x USB 2.0/1.1 on rear I/O 4x SATA 2.5GbE LAN Mic/line-in/line-out, S/PDIF audio support 2x USB 2.0/1.1 header for front panel Headers for SMBus, GPIO, SD card slot, I2C, LPC, serial port Onboard diagnostics for BIOS POST code data on LPC bus Onboard socket for secondary SPI flash ATX power input 24+4 pin connector
