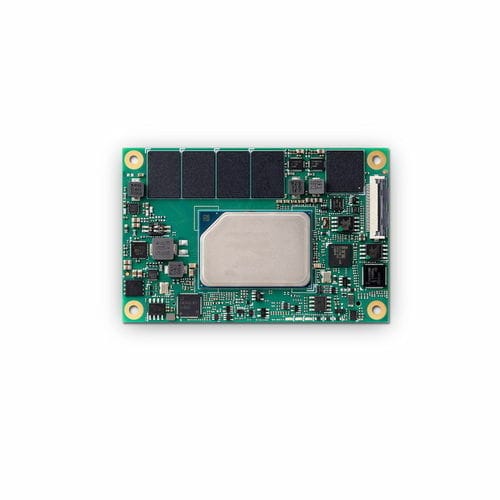

COM Express computer-on-module nanoX-EL

Intel® Celeron®Intel® PentiumUSB 2.0

The ADLINK nanoX-EL is a COM Express Type 10 module that supports Intel Atom® x6000 (x6425E, x6413E, x6211E, x6200FE, x6425RE, x6414RE, x6212RE) as well as Intel® Pentium® and Celeron® N and J series processors (formerly Elkhart Lake) with integrated Intel® UHD graphics at a and high speed interfaces. nanoX-EL modules support LPDDR4 memory with in-band ECC up to 16GB, and are also available with rugged operating temperature range and low power envelope, making them a perfect match for mission critical fanless edge computing applications that require safety and reliability at all times. Specifications Intel Atom® x6000E Series, Intel® Pentium® and Intel® Celeron® N and J Series processors LPDDR4, up to 16GB, IBECC capable 4K display via DDI 0, HD Audio LVDS or eDP, 4 lanes 4x PCIe Gen3 2.5GbE Ethernet, TSN capable 2x USB 3.x/2.0 and 6x USB 2.0 2x SATA GPIO/SD and eMMC 4.75V to 20V wide voltage input
