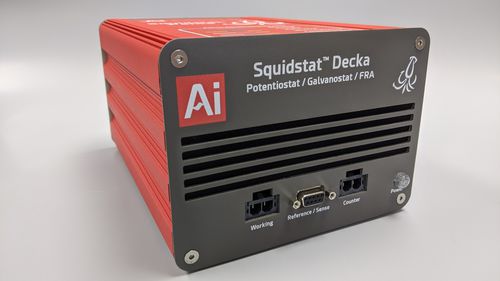

Single-channel potentiostat Squidstat Decka

±10 A Potentiostat with EIS up to 1 MHz and 1% / 1° Accuracy at 0.1 mΩ Squidstat Decka Highlights: Becomes a multichannel system by connecting more Squidstats to the same computer Onboard memory (16 GB) backs up all data collected from experiments for failsafe recovery Voltage/current setpoints, OCP mode, and sampling rates are adjustable in real time Wide selection of prebuilt experiments are available, and the “Drag & Drop” experiment builder can quickly and easily make custom experiments – no coding skills necessary! Each Squidstat Decka includes one 90 cm Working Electrode cable, one 90 cm Counter Electrode cable, one sense cable with Reference, Working Sense, Counter Sense connections, one USB cable, and one power cable to connect to a power outlet. The Squidstat User Interface software and unlimited remote technical support are included with purchase. Channels Per Unit 1 Operating Modes Pot / Gal / ZRA / FRA Cell Connections 2, 3, 4, or 5 electrode ADC/DAC Resolution 16 bit resolution Slew Rate (No Load) 5 MV/s Maximum Sampling Speed 100,000 samples/s Floating and/or Earth-grounding Both (Switchable) Input Impedance > 10 Tera-ohm Input Bias Current < 1 pA Data Backup Memory (Onboard) 16 GB Physical Dimensions 23 cm x 17 cm x 13 cm Channel Cable Length 90 cm Computer Interface 1 USB per unit Power Supply Requirements 100 – 240 VAC, 50 – 60 Hz
