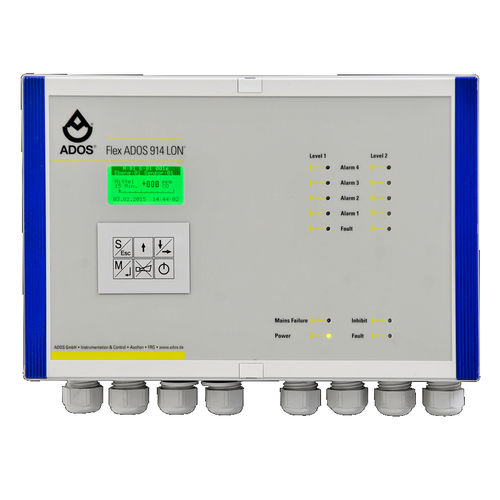

Gas detector control unit FlexADOS 914 LON®

Suitability The FlexADOS 914 LON® is a measuring, control and warning unit for gas sensors. It continuously monitors the ambient air and provides an early warning of harmful, explosive and non-flammable gases and vapours. Together with the TOX 914 LON® gas transmitters, FlexADOS 914 LON® fulfils VDI guideline 2053 from December 2014 and also EN 50271. Areas of application Garages and tunnels Chemicals industry Paint and varnish manufacturing Liquid gas storage facilities Laboratories Refrigerated warehouses (ammonia monitoring) Refineries Measurement of oxygen concentration Gas-powered boilers Wastewater treatment plants and much more Features Up to 60 digital LON®bus sensors are evaluated (TOX 914 LON®, LCTR 404 LON®) Graphic LCD display to show actual values, mean values and faults in plain text Indicator for operation, malfunction, maintenance, power failure Simple menu-guided setting of the device parameters using 6-part keyboard Five alarm thresholds per sensor, independently adjustable from 10 to 90% of the measuring range Averaging from 1 to 60 minutes possible, 2 levels (fan areas) can be displayed Maximum of 14 potential-free changeover contacts to control further warning and control facilities Potential-free changeover contact for malfunction, maintenance and power failure As an option: Building control system connection for data transfer (measuring value and state) Plastic wall housing (IP 54) High operating reliability Low power consumption Simple assembly Uninterrupted electricity supply possible
