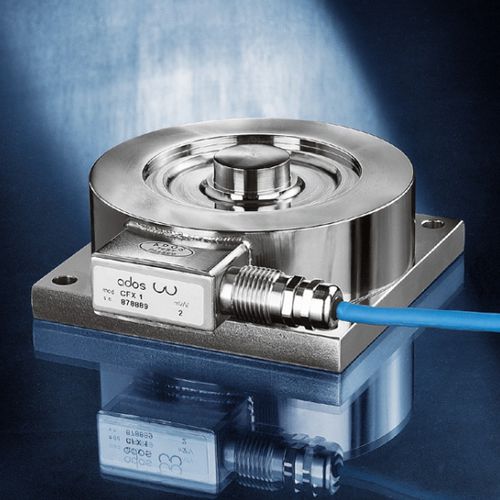

Compression load cell C series
button typestrain gaugeweighing

Compression load cell - C series - ADOS - button type / strain gauge / weighing
Compression load cell - C series - ADOS - button type / strain gauge / weighing
Add to favorites
Compare this product

Go to the ADOS website for more information

Characteristics

Type
compression
Form
button type
Technology
strain gauge
Applications
weighing, for hopper, for silos
Other characteristics
stainless steel, IP67, rugged
Rated load

Max.: 20,000 kg
(44,092.45 lb)

Min.: 100 kg
(220.46 lb)

Description

•Hoppers weighing •Tanks weighing •Silos weighing •Stainless steel AISI 630 (17-4-PH) •Hermetically welded seal (IP67) •Low profile •Spherical loading button for optimum alignment of load •Top plate and base plate included •Double strain gauge bridge available (redundant circuit) •Simple installation •Individual test report •SLF20/SLX20 mounting assembly available (optional) •EX version for hazardous area available (optional)
