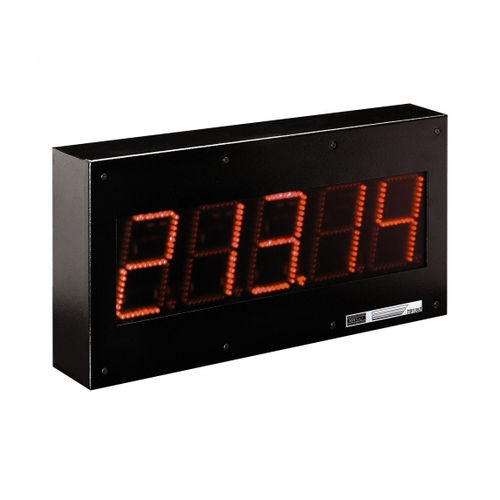

Digital slave display TB13

LEDanalogindustrial

ADOS manufactures a wide range of weight serial repeaters that allow to find the best solution for all different industrial environments. Versions with current or voltage analog input are also available •Numerical serial digital repeater with LED digits •Digits height 130 mm •Power supply 230 Vca -50 Hz (standard) •Consumption 20 VA •Nominal temperature range -10..+40°C •Storage temperature range -20..+70°C •The serial line is available in both the RS232 and RS485 mode. •The repeater can handle an RS485 line on a two balanced wires. •Transmission protocols MODBUS-RTU, ASCII-ADOS •Baud rate 1200-2400-4800-9600 •Housing in sheet painted steel •Environmental protection IP64 •Wall mounting by brackets on the rear housing 1 - 115 Vca 2 - 230 Vca* 3 - 24 Vca 4 - 24 Vcc 5 - 12 Vcc
