Compression load cell CEX series
button typestrain gaugeweighing

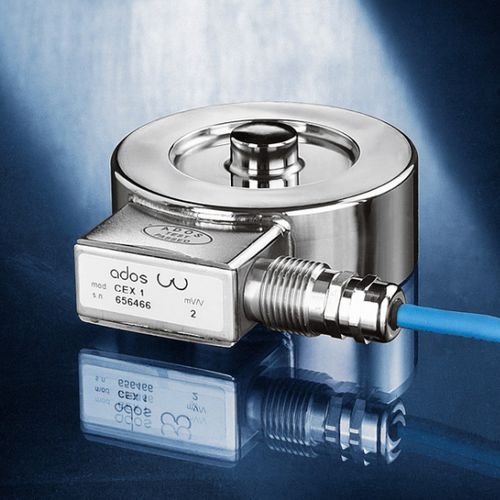

Compression load cell - CEX series - ADOS - button type / strain gauge / weighing
Compression load cell - CEX series - ADOS - button type / strain gauge / weighing
Add to favorites
Compare this product

Go to the ADOS website for more information

Characteristics

Type
compression
Form
button type
Technology
strain gauge
Applications
weighing, for hopper, for silos
Other characteristics
stainless steel, through-hole, economical, IP67
Rated load

Max.: 12,000 kg
(26,455.47 lb)

Min.: 100 kg
(220.46 lb)

Description

•Hoppers weighing •Tanks weighing •Silos weighing •Stainless steel AISI 630 (17-4-PH) •Hermetically welded seal •Low profile for applications with limited space •Spherical loading button for optimum alignment of load •Double strain gauge bridge available (redundant circuit) •Simple installation •Economical solution for industrial weighing •Individual test report •KAF/KLF mounting assembly available (optional)
