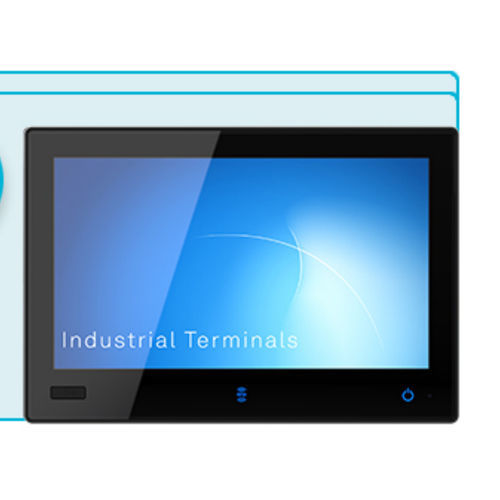

Multitouch screen HMI terminal MES9000

projected capacitive touchscreenVESA mountingtable-top

The MES9000 series can optionally be equipped with integrated antennas for a WLAN/Bluetooth module and with an RFID antenna in the front. The power button on the front can be configured on the software side according to customer needs. An integrated 24V DC or a 230V AC power pack is available for the appropriate power supply. The interface area of the MES9000 series includes several modern interfaces, such as USB 3.1 Gen. 2 and DisplayPort++ (1.2), for connecting a wide variety of peripheral devices. In addition, the digital I/O and an optional front USB provide further connections for numerous possible applications. The device has two threaded sockets on the top and bottom of the device for attaching accessories such as keyboard and scanner holders. The optional integrated HDBaseT transmitter module allows multimedia signals (image, sound, touch control) to be transmitted up to 100 m via a single cable. The ideal solution for remote application environments in combination with industrial monitors from ADS-TEC such as our OPD series or MMD series. With the optionally available Hilscher netJACK modules, various fieldbus types as well as Real Time Ethernet as master or slave can be integrated into the MES9000. The integration can be carried out quickly and easily without any tools. This offers enormous flexibility. Big-LinX® IIoT Client Secure connection for servicing • VPN tunnel secured via smartcard (optional software certificate also available) • Includes X-Remote for secure remote desktop connection • Configurable and secure data push for provision and visualisation of remote maintenance or other big data applications
