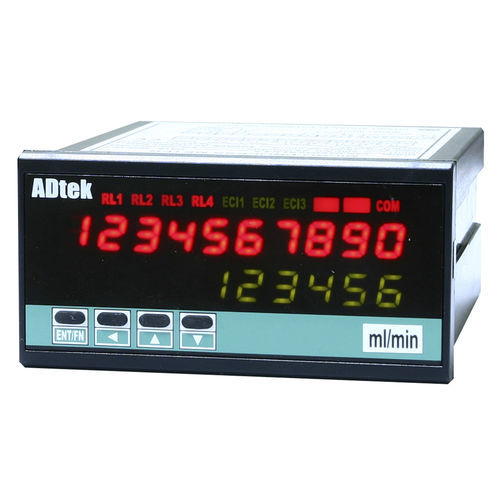

Rate indicator totalizer CS2-TM

digitalpanel-mount4-20 mA

The CS2-TM Totalizer controller provide high accuracy measurement, display, control and communication (Modbus RTU mode) of 0~10V/4~20mA from flow meter or mV from Shunt for Amp-Hour. There are two display screen and 3 external control input (DI) in standard and the optional 4 Relay, 1 Analogue, 1 Pulse and RS485 port available. They are also support fantastic control function as like as N, R, C mode for totalizer and batch control. Summary of specifications ● Measuring DC signal 0 ~ 10V or 0(4) ~ 20mA (with square root function) from flow meter or 0~50/~60/ ~100mV from Current Shunt for Amp-Hour control. ● Dual display screen for 10 digital Totalizer or Batch counter + 4 2/3 Immediate Value (PV) or 6 digital Batch programmable. ● 4 banks pre-set for all relay functions relative 4 difference scaling, and selectable by 3 External Control Inputs(E.C.I.) or front key in optional ● 4 relay can be individual programmed to relative immediate value (PV) or totalizer / batch / batch counter. ● Relative to Immediate Value (PV): Functions settable Energized Mode Hi / Lo / Hi (Lo) Hold / DO / Go, Hysteresis‚ Energized Delay, De-energized Delay, Energized latch or Energized by RS485 command. ● Relative to Totalizer / Batch / Batch Counter: N / R / C mode and energized time programmable. ● 3 external control input can be individual programmed for immediate value (PV) or totalizer / batch / batch counter. ● Immediate Value (PV): PV Hold / Reset for Maxi. (or Mini.) Hold / DI / Reset for Relay Energized Latch ● Totalizer / Batch / Batch Counter: Reset, Gate ● Analogue Output and Pulse Output available in option ● RS485(Modbus RTU mode), Baud Rate is up to 38400bps
