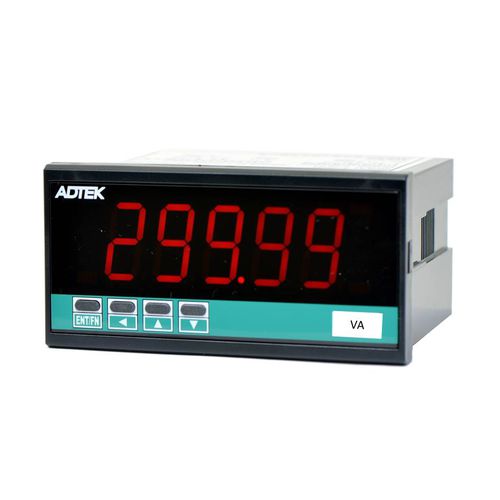

Panel meter with LED display CS3-VA

currentvoltagepanel-mount

CS2-VA 4 2/3 Digits Voltage/Current Meter (96x48mm) Designed in miniature size(24 x 48mm), and provide high accuracy measurement, display and communication of 0~300V or 0~20mA for DC/AC(average). They are also to build 2 Relay outputs, 1 External Control Input, 1 Analogue output or 1 RS485(Modbus RTU Mode) interface with versatile functions such as control, alarm, re-transmission or communication. Specifications: ● Measuring Voltage 0~300V or Current 0~20mA for DC / AC(average) ● 2 relay can be programmed individual to be a Hi / Lo / Hi Latch / Lo Latch energized with Start Delay / Hysteresis / Energized & De-energized Delay functions, or to be a remote control. ● Analogue output or RS 485 communication port available in option ● 1 external control input can be programmed to be Relative PV(Tare) / PV Hold / DI (remote monitoring) / Reset for Maximum or Minimum Hold / Reset for Relay Energized Latch…. ● CE Approved
