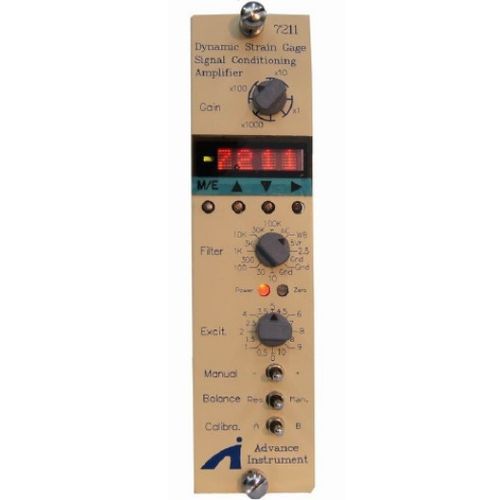

Signal amplifier 7211

conditioningdifferentialadjustable

7211 Signal Conditioning System is designed with and incorporates all the features necessary for dynamic precise conditioning of strain gage and transducer inputs in the most severe operating environments. 7211 Signal Conditioning and amplifier’s low-level signals to high-level outputs for multiple channels can be simultaneously and dynamically recorded and displayed on external devices. Features ● Differential signal amplifier with high bandwidth up to 1MHz ● Gain Accuracy ± 0.1% ● Fully adjustable calibrated gain from 1 to 10,000 ● 4 digital LED display for output voltage or gain setting ● Accepts foil type strain gage, piezo resistive, potentiometers, etc. ● Selectable bridge Constant-voltage excitation: 0.5 to 10V ● Plug-in amplifier ● Automatic bridge balance, with EEROM to preserve balance without power ● Built-in with all bridge completion including 120 or 1000 and 350 Ω dummies. ● Built-in with shunt calibration circuits ● Built-in with optically isolated shunt calibration relays ● Built-in with four-pole Bessel low-pass filter with cutoff frequencies of 10 Hz, 30 Hz, 100 Hz, 300Hz, 1k, 3k, 10k, 30k, 100kHz and wide-band ● Possess other filter type and cut-off frequency ● Front-panel monitoring: Automatic balance status
