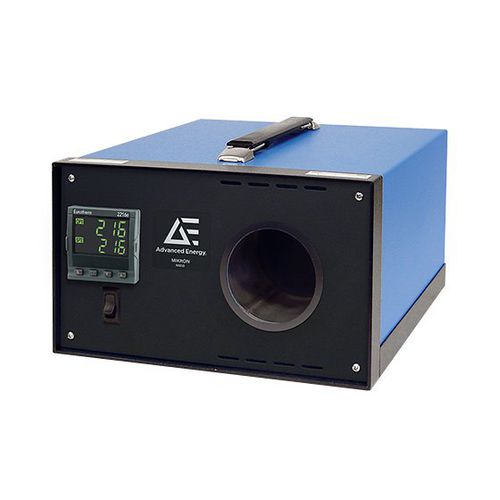

Portable black body calibration source Mikron M310-HT

low-temperature

Portable, Compact Low Temperature Blackbody Calibration Source with a Large Surface Area, 5 to 450°C Advanced Energy's Mikron M310-HT Series Calibration Sources are infrared radiators used for calibrating and verifying output signals of infrared thermometers (pyrometers), thermal imaging systems, heat flux management systems, or spectrographic analysis systems. •Manufactured and tested to meet rigid quality control standards •Excellent general-purpose calibration •High accuracy and high resolution Overview The Mikron® Calibration Source M310-HT is a portable blackbody calibration source utilizing a digital indicating temperature controller that may be set to any temperature between ambient +5 to 450°C (+9 to 842°F). A precision RTD temperature sensor is embedded in the blackbody emitter, providing high accuracy and repeatability. The temperature controller uses industry-standard PID algorithms to control the emitter temperature to within 0.3°C of the set points. The blackbody emitter mechanism uses a resistive heating device that provides long life, short stabilization times, and stable temperature control. Temperature set points are changed by pressing the up or down arrow buttons on the controller. The lower display is the set point and the upper display is the actual blackbody emitter temperature. Benefits •Ensure fast heat-up times and high temperature stability •Easily change temperature set points by pressing the up or down arrow buttons on the controller •Experience a long life, short stabilization times, and stable temperature control •Achieve high accuracy and repeatability •Guarantee the quality of your calibration source
