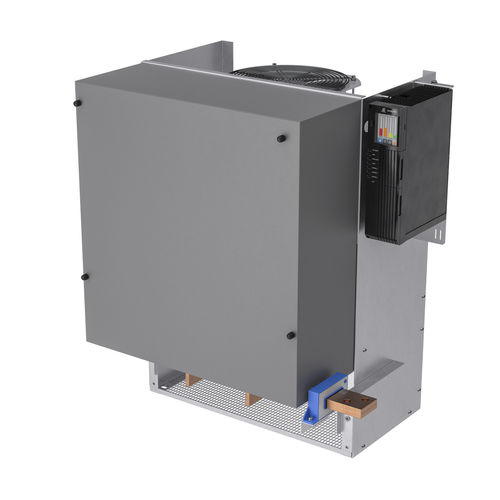

SCR power controller Thyro-PX DC

digitalmodular

Enhanced SCR Power Controller for All DC Rectifier Applications Developed with the highest degree of reliability and state-of-the-art driven technology, the Thyro-PX DC series of digital SCR power controllers are designed for all DC rectifier applications. The series supports multiple operating voltages and control modes. Available up to 1800 A DC Current The Thyro-PX® DC series SCR rectifiers are designed and enhanced for all DC rectifier applications to develop solutions with the highest degree of reliability. Air-cooled rectifier type with modular 6 pulses stack (B6C) and extendable for 12 and 18 pulses parallel operation for higher power and less DC ripple Large 2.8 in (71.1 mm) LED graphic display with an integrated process data recorder and SD card. Multiple I/O options, with integrated memory for error tracking and energy consumption PRODUCT HIGHLIGHTS  Input 3-phase AC max 690 V for 4.5 MW power rating 18 pulses (available on request)  Modular stack DC current highest 1800 A air cooled B6C  Take advantage of existing Thyro-PX controller card architecture  Advanced automation capabilities  Easy integration and configuration for B12C; B18C application  Available Thyro-Tool Pro PC software via micro-USB interface USER BENEFITS Utilize higher power and less DC ripple Leverage constant current and/or voltage regulation with ±1% accuracy Precisely regulate power, including load management, for optimal control and energy consumption Intuitively set up and commission using an integrated touch-screen display TYPICAL APPLICATIONS  Electrolyzer  Hydrogen electrolyzer  Water purification  DC heating elements  DC supply for crystal growing
