Development board servo-drive FD060-10-EM

DCbrushlessstepper

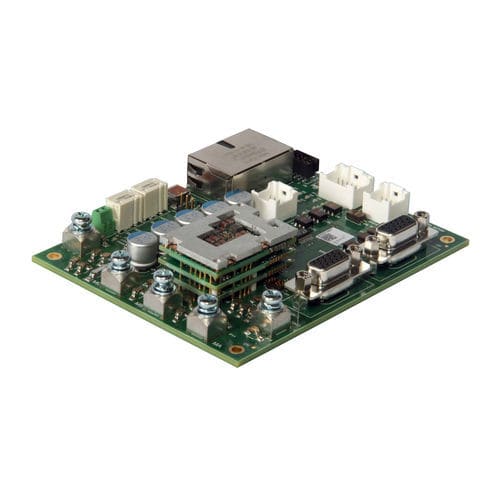

The FD060-10-EM is a servo drive and development board assembly for a FE060-10-EM FlexPro® servo drive with IMPACT™ architecture. Connections to the controller, motor, power, and feedback are simplified through the standard connectors featured on the board. The FD060-10-EM is ideal for prototyping and can be used in production and industrial environments as well. CONTROL/COMMAND ±10 V Analog Step & Direction (5V) Encoder Following Indexing Jogging Over the Network Sequencing PRIMARY FEEDBACK BiSS C-Mode EnDat® 2.2 Halls Incremental Encoder Tachometer (±10 VDC) OPERATING MODE Profile Modes Cyclic Synchronous Modes Current Position Velocity MOTOR TYPE Three Phase (Brushless) Single Phase (Brushed) Stepper
