Straight conveyor UF-3060

beltelectric drivefor parts

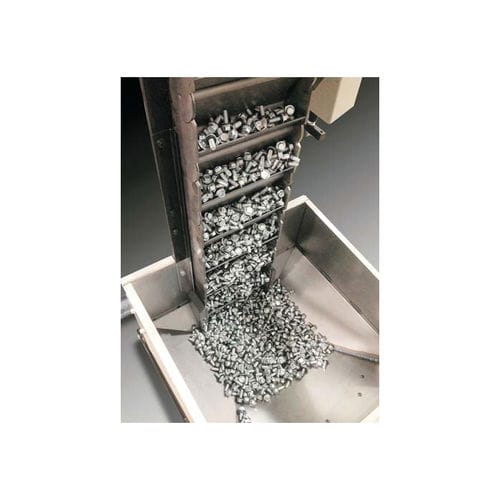

UF-3060 Steel Conveyor/Hopper (Heavy Duty) Model UF-3060 conveyor is a patented, closed frame steel conveyor system which is designed to eliminate the problems associated with parts jamming in the conveyor. Straight up (95°) incline design is used for space conservation. Totally enclosed steel buckets -parts won't ride along guides, eliminating galling and jamming. DC variable speed control with torque limiter. Buckets are 1/8" thick steel with 1/2" diameter steel pivot shafts and all bearing are sealed. Unit is also equipped with a removable oil and chip pan in bottom for good housekeeping. Specifications: • Construction: Heavy gauge, welded steel construction • Air dry enable • Load height: 30” to 32” • Discharge height: 51” • Discharge chute: standard 15 degrees • Motor Drive: DC controller with Integrated Limit Switch activation • Drive: HP variable speed DC • Hopper Width: 30" • Hopper Volume: 4 Cubic foot approx. • Buckets: 10" carbon steel • Guarding: Mast and top • Electric: Single phase 110V/60Hz • Options: 220V/50Hz electrical upgrade (no charge) Product Type: - Simple product Lead time: - Days Pack Size: - Each UOM: - Ea Is PLC: - No
