Belt conveyor UF-3020

inclinedelectric driveparts

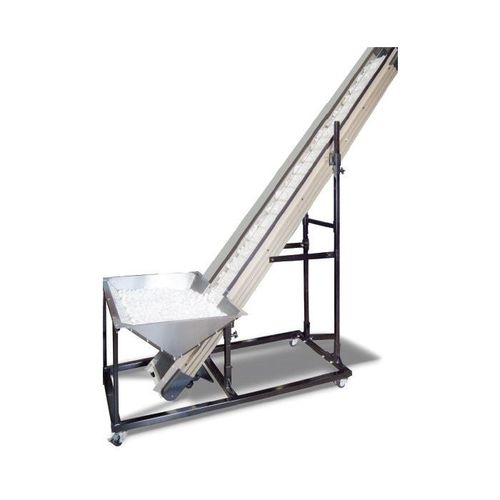

UF-3020 Hopper Conveyor Pre-Feeder (Light duty) Model UF-3020 includes a bulk hopper which is incorporated into the sidewalls of the conveyor. Advanced Poly configures this item for the part or customer requirements including the size of the hopper, infeed height and discharge height (conveyor specs). This version is typically provided for light duty applications such as molded plastic parts. Hopper Specifications: • 3-Cubic Foot Aluminum Hopper (Note 1) • Parts trap for product containment • Conveyor Specifications: • Conveyor Length: 6 Feet (Note 2) • Exposed Belt Width: 12 inches (Note 3) • White Monofilament Cleated Belt (Note 4) • Cleats 11.5" wide x 1.5" High on 6" Centers (Note 5) • Angle of Incline: 60 degrees • V-Belt Guidance System • Variable Belt Speed, 0-30 Ft/Min (Note 6) • Stainless Steel Discharge Chute (Note 7) • 3 Inch Dia. Soft Rubber Swivel Casters with Locks (note 8) • 120V/60Hz (Note 9) Notes: Specification may change, which may affect pricing 1) Stainless Steel Hopper available. Also, capacity may change based on infeed height or other spec changes; customer to specify. 2) Conveyor length may change based on required discharge height; customer to specify discharge height. 3) Conveyor width may change, 6", 12" or wider conveyors available, customer to specify. 4) White, green, or black belts available (white is FDA), customer to specify. 5) Cleat heights may change, 1", 1.5", 2", 3" or higher available, customer to specify. 6) 1/4 HP Motor standard, to be specified based on weight of product and conveyor width/length 7) Standard open discharge chute may cause some parts to bounce; closed adjustable lid available 8)
