Vibrating conveyor UF-3040

beltinclinedelectric drive

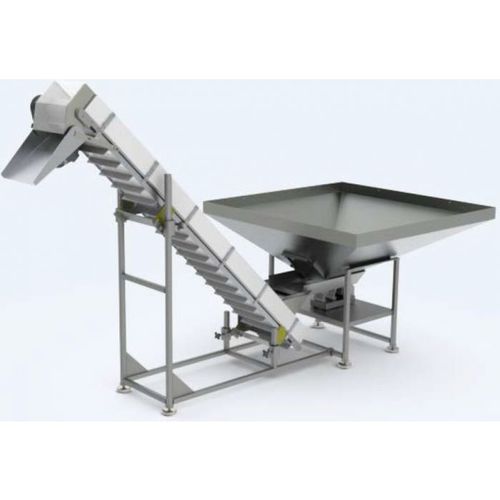

UF-3040 Vibratory Hopper/ Pan-Feeder Conveyor System Model UF-3040 incorporates a large bulk Hopper which is supported on its own stand to hold bulk products. Tied to the hopper, a conveyor is positioned at the end of the vibratory feed pan with parts trap. Cleated compartment conveyor lifts the product to APP counters or scales, or other third-party systems. Advanced Poly configures this item as a pre-feeder based on system or customer requirements for bulk capacity, infeed height and discharge height. Hopper Specifications (standard): • 4-5 Cubic Foot, Powder Coated CRS Hopper • Adjustable slide gate to dispense product from hopper onto the Vibratory feed pan - Vibra-drive feed pan with adjustable vibration controller • Welded, Black Powder Coated CRS Frame • Conveyor Specifications: (Standard specifications listed) • Conveyor Length: 6 Feet • Exposed Belt Width: 12 inches • White Monofilament Cleated Belt • Cleats 11.5" wide x 1.5" High on 6" Centers • Angle of Incline: 45 degrees • V-Belt Guidance System • Variable Belt Speed (0-30 Ft/Min ) • formed Polycarbonate cover over Incline Section • Stainless Steel Discharge Chute • 120V/60Hz Notes: Specification may change, which may affect pricing: 1) Hopper capacity may change based on infeed height or other spec changes; customer to advise infeed height required. 2) Potentiometer to adjust vibration level; if integrated into APP equipment, this level will be controlled through the touch screen of the counter/scale system 3) FDA / White or Steel-it coatings available, customer to specify 4)
