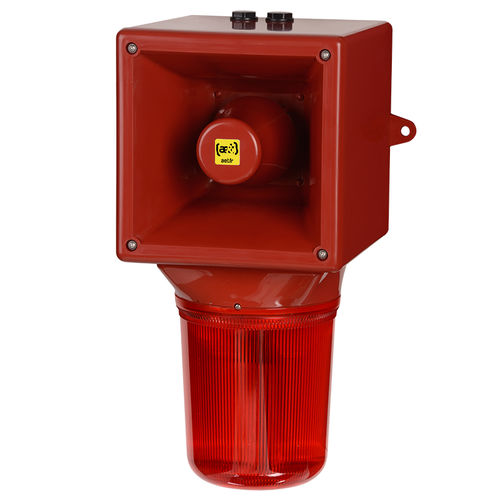

This Optason® handset combines a 124 dB siren at 1 m with an O400FX type light. Fire and siren can be controlled separately.
Plus points
64 tones
4 tones can be remotely controlled
Operating modes: 1 Hz flash (1.5 Hz and double flash available with Vcc versions)
Low inrush current
Automatic synchronization
Double removable terminal blocks
Non-return diode for line monitoring
Technical characteristics
Product description : - 15J Xenon/124dB OPTASON® combi 64 Tones - IP 65
Functions - Flash
Lighting source - Xenon
Effective Range in Candelas - 500.0 cd
Average life time of the flash - 70% efficiency after 8 million Flashes
Synchronisation - Yes (in parallel mounting)
Output in dB - 124 dB
Number of Tones - 64
Number of remote tones - 4
Sound Adjustment - Yes by potentiometer
Choice of Tones - Yes - By microswitch
Acoustic signal type - Programmable tone
Ingress Protection - IP65
Min Operating Temperature - -40 °C
Max Operating Temperature - 66 °C
Min Storage Temperature - -40 °C
Max Storage Temperature - 70 °C
Relative Humidity - 95% at 20°C
Cable entries - 2 x M20
Power Factor - 100 %
Width - 190.0 mm
Height - 387.5 mm
Depth / Thickness - 191.5 mm
Housing Material - ABS/PC UL94 V0 & 5VA FR
Optical Materials - Polycarbonate
Available Lens Colours - Clear, Amber, Red, Blue, Yellow, Green, Magenta
Colour (material) - Red
Tolerance - 20-28 VDC, 42-54 VDC, 103.5-126.5 VAC, 207-253 VAC
Voltage - Current Type - VDC, VAC
Voltage - 24, 48, 115, 230
Nominal consumption - 1800 mA, 933 mA, 740 mA, 437 mA
Weight - 2.3 Kg, 2.9 Kg
