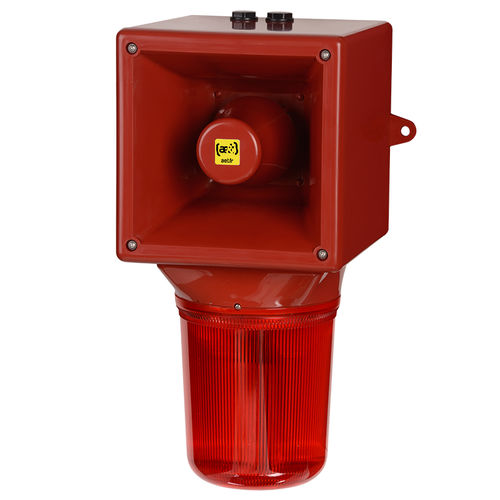

Siren with LED beacon O540DLV2
IP6564 sounds

Siren with LED beacon - O540DLV2 - ae&t - IP65 / 64 sounds
Siren with LED beacon - O540DLV2 - ae&t - IP65 / 64 sounds
Siren with LED beacon - O540DLV2 - ae&t - IP65 / 64 sounds - image - 2
Add to favorites
Compare this product


Characteristics

Type
with LED beacon
Protection level
IP65
Number of sounds
64 sounds
Sound level

124 dB

Description

This Optason® handset combines a 124 dB siren at 1 m with an O400L type LED light. Fire and siren can be controlled separately. Plus points 64 tones 4 tones can be remotely controlled 9 operating modes: 4 flash modes, 4 rotating modes, Continuous 3 modes controlled by wiring (Vcc versions) Low inrush current Automatic synchronization Double removable terminal blocks Non-return diode for line monitoring Technical characteristics Product description : - LED/124dB OPTASON® combi 64 Tones - IP 65 Functions - Flash Functions - Permanent Functions - Rotating Number of Lighting Mode - 9 Lighting source - LED Effective Range in Candelas - 30.0 cd Synchronisation - Yes (in parallel mounting) Output in dB - 124 dB Number of Tones - 64 Number of remote tones - 4 Sound Adjustment - Yes by potentiometer Choice of Tones - Yes - By microswitch Acoustic signal type - Programmable tone Ingress Protection - IP65 Min Operating Temperature - -40 °C Max Operating Temperature - 66 °C Min Storage Temperature - -40 °C Max Storage Temperature - 70 °C Relative Humidity - 95% at 20°C Cable entries - 2 x M20 Power Factor - 100 % Width - 190.0 mm Height - 387.5 mm Depth / Thickness - 191.5 mm Housing Material - ABS/PC UL94 V0 & 5VA FR Optical Materials - Polycarbonate Available Lens Colours - Clear, Amber, Red, Blue, Yellow, Green Colour (material) - Red Tolerance - 10-50 VDC, 103.5-126.5 VAC, 207-253 VAC Voltage - Current Type - VDC, VAC Voltage - 12, 24, 48, 115, 230 Nominal consumption - 1330 mA @24 Vdc, 470 mA, 282 mA Weight - 2.3 Kg, 2.9 Kg
