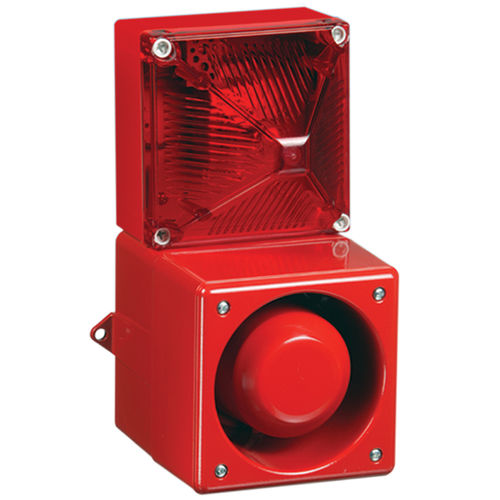

Siren with xenon beacon DSF10
ruggedIP66IP67

Siren with xenon beacon - DSF10 - ae&t - rugged / IP66 / IP67
Siren with xenon beacon - DSF10 - ae&t - rugged / IP66 / IP67
Add to favorites
Compare this product


Characteristics

Type
with xenon beacon
Protection level
rugged, IP66, IP67, IK08
Number of sounds
31 sounds
Other characteristics
cast aluminum
Sound level

114 dB

Description

Very robust combi set especially adapted to the harshest industrial environment conditions. Plus points Extremely robust IP66/67 combi, mechanical strength IK08, made of cast aluminium Choice of 31 tones, with 3 remotely controlled Very powerful 13J strobe Technical characteristics Product description : - 114dB siren 13J strobe light combi IP66/67 cast aluminium Functions - Flash Lighting source - Xenon Effective Range in Joules - 13.0 J Effective Range in Candelas - 260.0 cd Flash Rate - 1 Hz (60 Flashs / min) Average life time of the flash - 70% efficiency after 12 million Flashes Output in dB - 114 dB Number of Tones - 31 Number of remote tones - 3 Choice of Tones - Yes Acoustic signal type - Programmable tone Ingress Protection - IP66 / IP67 Impact Resistance - IK08 Min Operating Temperature - -40 °C Max Operating Temperature - 55 °C Min Storage Temperature - -40 °C Max Storage Temperature - 70 °C Relative Humidity - 90% at 20°C Cable entries - 2 x M20 Max. Cable size - 2.5 mm2 Power Factor - 100 % Width - 130.0 mm Height - 264.0 mm Depth / Thickness - 143.0 mm Weight - 2.6 Kg Housing Material - Aluminium fusion Optical Materials - Polycarbonate Available Lens Colours - Red, Amber, Green, Clear, Blue, Yellow Tolerance - 19-29 VDC, 195-253 VAC, 95-137 VAC Voltage - Current Type - VDC, VAC Voltage - 24, 230, 115 Nominal consumption - 1.12 A, 220 mA, 460 mA
