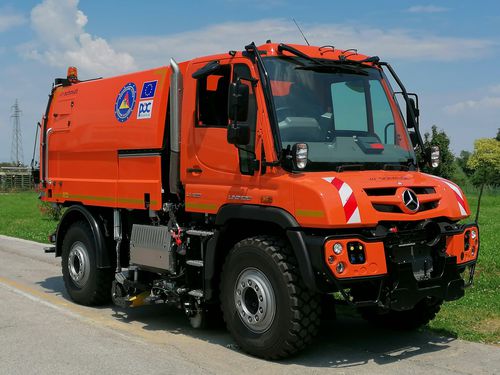

Ride-on sweeper SK 3 series

hydraulicdustleaf

Our de-mountable SK sweeper series is designed exclusively for mounting on a Unimog for cleaning city centre areas, streets and industrial areas. Thanks to its efficient and well thought out product design, mounting and demounting is quick and easy. The Unimog’s power hydraulics render any additional auxiliary engine superfluous. Highlights Safe and proven quick change system Pulled sweeping unit ensures less wear Optional equipment for wet cleaning work Your benefits Compact design: Sweeper series optimally adapted to the Unimog Manoeuvrability: Compact design and small turning circle Rapid deployment: Quick-change system allows fast assembly and disassembly The towed sweeping unit features disc brush, roller brush and V-shaped suction nozzle fitted between the axles. This means less wear on the brushes and a system that follows the road perfectly for maxiumum protection. The water tank is made of corrosion-free fibre-reinforced plastic with a capacity of 1,000 litres. The fresh water pump supplies the disc brushes, roller brush and suction nozzle with spray water to bind fine dust particles with up to four bar / 40 l / min. A high-pressure cleaner (15 litres/ 100 bar) with a lance, 20m hose and automatic hose reel for cleaning work are available as an option. The hopper features a non-corrosive steel floor pan. Hydraulic tipping to the rear, at a 47° tipping angle, can be operated via the control panel. The tailgate can also be hydraulically locked and opened. The hopper has a practical observation flap and a foldable, integrated leaf screen.
