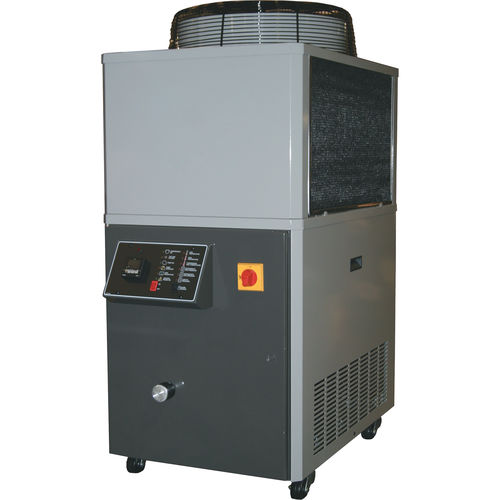

Air chiller PSA 3.5

industrialfor the food industryfor the pharmaceutical industry

PSA Series Air-Cooled Packaged Chiller includes a 3.5 hp scroll compressor in a compact footprint. This chiller features a unique enclosure design that simplifies service and maintenance and conserves valuable production floor space. Incorporate these chillers into your planned or existing production layout easily and effectively. PSA Series Packaged Chillers have an operating leaving fluid temperature range of 30°F to 65°F (-1°C to 18°C). Standard Features • Operating leaving water temperature range 30°F to 65°F (-1°C to 18°C), glycol is required for fluid temps below 50°F (10°C) • Hot gas bypass capacity control • Scroll compressor • R-410a refrigerant • External fill/drain/sight glass • Valved Process fluid connections • Low Process fluid pressure switch • Non-ferrous piping • Hot gas bypass capacity control • Scroll compressor • Pressure-actuated Process water bypass valve for system protection • To Process 2.5” dual scale liquid-filled pressure gauge • Fully insulated refrigeration and process piping • High and low refrigerant pressure cut-outs • High compressor discharge temperature cut-out • High pressure spring-actuated refrigerant relief valve • Filter dryer, sight glass, balanced-port thermal expansion valve, refrigeration service access ports • 6 Gallon polyethylene tank Electrical Control Features • Fully accessible NEMA 12 enclosure • Non-fused disconnect switch with MCP motor protection • Microprocessor-based PID auto-tuning controller with To Process and Set Point LED readout • Low and high process water temperature electronic cut-out switch with LCD display • Graphic control panel with status lights
