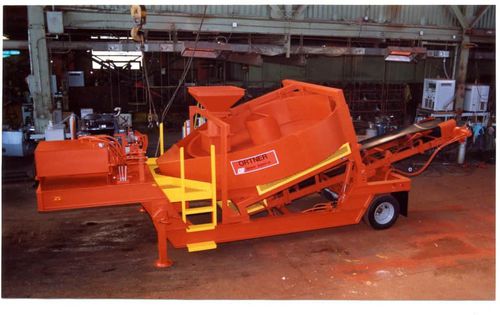

Vibrating classifier ORTNER ®

sandwaste recyclingprocess

Washing and Fines Removal. 1/3 the water, 1/3 the power: The Ortner® is revolutionary in aggregate washing equipment for dewatering, removing fines, classifying and rinsing sand and other materials up to 3”. Material is fed into a slowly revolving inclined pan and vibrated at high frequency. The high frequency quickly separates the various sizes of material, with fines and water rising to the top and discharging over the pan’s edge. The coarser material sinks to the bottom, where the settled particles are carried by the rotating pan up and out of the water. A stationary plow diverts the dewatered material to a central discharge spout. The driving and vibrating mechanisms are mounted under the pan. This prevents contamination with the water and processed material, and increases the life of these components. The Task for Sand Washing Equipment The Ortner® uses much less water than other sand dewatering and classifying machines, and it consumes far less power, creating significant savings for the operator.
