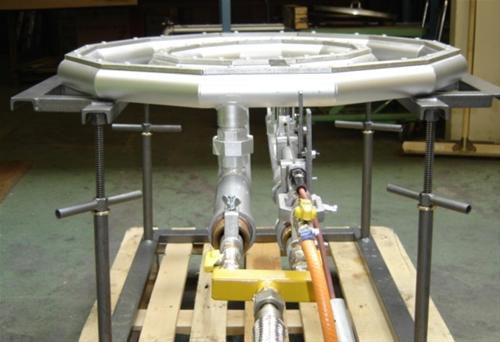

Atmospheric burner

natural gasdirect firedbar

V flame bar formed burners Those burners are based on the straigth 'V' bar burner technology and designed further the forme requests. They are developped to complet the standard ring burner range. CHARACTERISTICS All geometric formes (U, square, hexagonal, octogonal...) Natural gas and propane between 100mbar to 1.75 bar. Iron steel or stainless steel material. Options : Flame failure system by thermocouple valve for any gas rating under 120 kW (410,000Btu). Flame control with automatic ignition and flame failure surveillance by ionisation mainly or UV probe for all gas rating. Automatism and controls. Support frame. APPLICATIONS Manufacturing tool preheating. Preheating parts or cabinets with large and long surfaces. Food industry.
