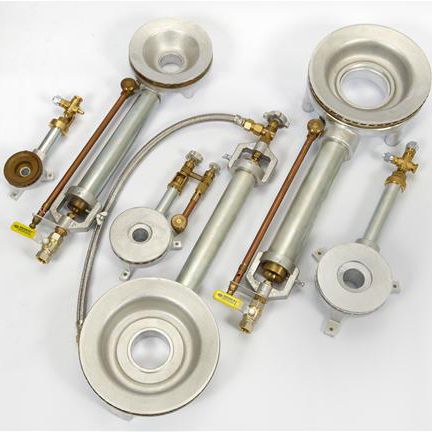

Pilot burner FH

atmosphericgasdirect fired

Horizontal flame ring burner range. The ring atmospheric gas burners AEM are adapted for industrial practices and essentially for food industry with horizontal flames. CHARACTERISTICS Ring burner range : gas atmospheric burners between 10 to 200 kW (34,000 to 680,000 Btu). Flame ring diameter between 80 to 250mm. Air/gas mixing system adjusted lenghts allowing applications until 600kW (2,000,000 Btu) with 3 burners at 120°, to increase the heat distribution. Horizontal flame to reduce the flame impact. With or without pilot. Propane or Natural gas between 300mbar to 1.75 bar. APPLICATIONS Liquid vat heating for distillery, brewery and other liquid drinks. Pressured cookers. Paint tank for roads. Craft industry sweets cookers. Kettles, skillets and tanks with flat bottoms for food industry. Pressurized cookers. Stamping tool preheating.
