Pilot burner table

natural gasdirect firedflange

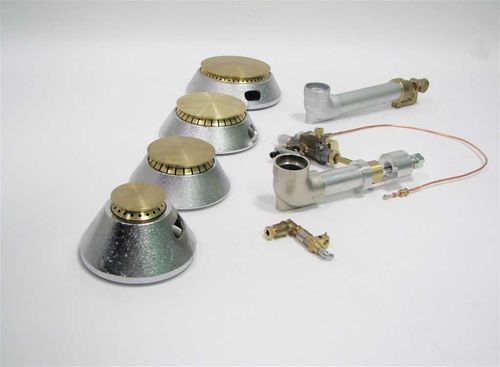

'table' open top burner range. AEM offer a complet range of 4 ring open top burners between 3.5 to 9.5kW (12,000 to 33,000Btu). CHARACTERISTICS 3 different bodies for the range : standard, flange (better splash protection), integral (for pilot using only). Peinted or coated cast iron body and elbow. 4 different diameter of burner head : 50; 80; 100 and 120mm with 1 outside flame ring and easely cleaning without using tools. The gas rating gap is between 3.5 to 9.5kW (in accordance to the standard EN203-1). 2 kinds of flame orifices : holes or slots. For all gas types : Natural gas at 20 or 25 mbar, propane at 30,37 and 50 mbar and butane at 28 to 30mbar or 50mbar APPLICATIONS Open top of stoves for the catering equipment and other equipment for the food industry. This range is adapted for the open top burner inside a cleaning pan. Adapted too for the prestigious domestic stoves.
