Gas burner

direct firedheatingfood

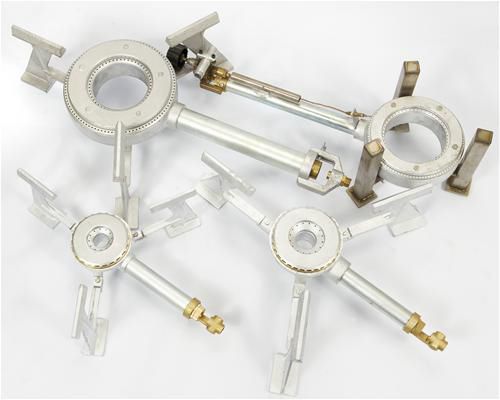

Tripod open top burner range. AEM propose a tripod single ou double ring flame burner range with gas rating gap between 9 to 20 kW (in accordance with the EN203-1). The legs are designed to set the heating equipment on the ground and to support the cooking pan. This range has to be certified EC in order to be sold on the european market. CHARACTERISTICS Large choice of burner types with single or double ring flame and verticale or horizontale flames. Several diameters of burner head : between 120 to 240mm. Flame orifices : holes or grooves. Tripod usual range in cast iron. Tripod in stainless steel further customer specifications. For all gas types : Natural gas at 20 or 25 mbar, propane at 30,37 and 50 mbar and butane at 28 to 30mbar or 50mbar. Adapted too for the gas couple butane / propane at 112/148mbar (France only). Gas safety tap mounted on the gas inlet in option. APPLICATIONS Portable heating equipment for different diameters of cooking pan. Mobile tank heating equipment for industry. Can industry or food cooking in a booth or during events.
