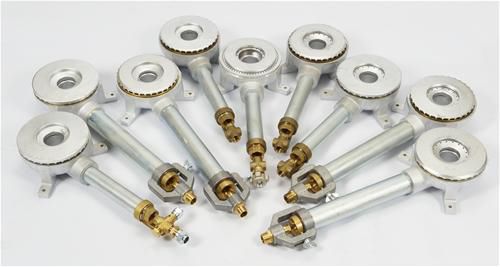

Natural gas burner GR TGP

direct firedfor food

'gr tgp' ring burner range. This range of ring burners propose the burner head between 80 to 140mm for gas rating between 6 to 17.5kW (in accordance with the EN203-1). CHARACTERISTICS Large choice of burner types with single or double ring flame and verticale or horizontale flames. Several diameters of burner head : between 80 to 140mm. Flame orifices : holes or grooves. Burner body and head in cast iron, pilote flame ring in brass except for the 'compact' range. Gas inlet fitting furhter request. For all gas types : Natural gas at 20 or 25 mbar, propane at 30,37 and 50 mbar and butane at 28 to 30mbar or 50mbar. Adapted too for the gas couple Butane / propane at 112/148mbar. Gas safety tap mounted on the gas inlet in option. APPLICATIONS Hot solid top for catering equipment. Low capacity kettles for food industry and commercial cookers.
