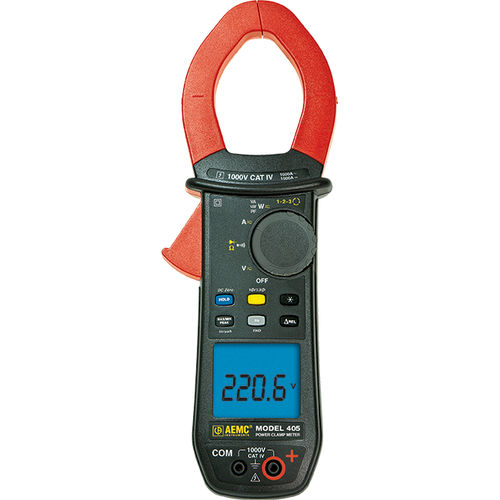

Digital clamp meter 405
portable1000 V1000 A

Digital clamp meter - 405 - AEMC Instruments - portable / 1000 V / 1000 A
Digital clamp meter - 405 - AEMC Instruments - portable / 1000 V / 1000 A
Add to favorites
Compare this product


Characteristics

Display
digital
Form
portable
Max voltage
1000 V
Max current
1000 A
Safety rating
cat IV
Additional features
frequency, harmonic, with power measurement, with data logger
Protection level
rugged, IP54
Other characteristics
AC/DC, AC, TRMS, DC
Max DC voltage

1,000 V

Max AC voltage

1,000 V

Max DC current

1,500 A

Max AC current

1,000 A

Max DC voltage resolution

0.01 mV

Max AC voltage resolution

0.01 mV

Max DC current resolution

0.01 mA

Max AC current resolution

0.01 mA

DC voltage precision

1 %

AC voltage precision

1 %

AC current precision

1 %

Process temperature

Max.: 55 °C
(131 °F)

Min.: -20 °C
(-4 °F)

Length

272 mm
(10.71 in)

Width

92 mm
(3.62 in)

Height

41 mm
(1.61 in)

Weight

600 g
(21.16 oz)

Description

The TRMS Power Clamp-on Meter Model 405 provides a new standard for safety and measurement capability not available in any other clamp meter sold today. Safety Rated at 1000V CAT IV, it is safe to operate in all electrical environments. It is rugged enough for the most demanding work environments and will withstand both dust and water spray with its IP54 rating. It is ergonomically designed and easily used by one hand, including function selection and button pushing even with a glove on. In addition to the standard measurement of volts, amps, frequency, resistance, diode checking and continuity, the Model 405 offers several unequaled functions including: AC, DC and AC+DC volts, amps and power, True InRush®, Delta relative function, Phase rotation indication, Power measurements and more.
