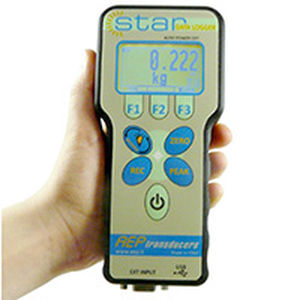

Pressure indicator STAR series

torqueforcedigital

STAR is a professional ergonomic indicator extremely versatile and easy to be used for measurement of FORCE, WEIGHT, PRESSURE (gas), VACUUM, TORQUE and DISPLACEMENT. It is possible to integrate inside a force sensor ( up to max. 5kN) or a pressure sensor (relative, absolute or differential up to max. 5bar) while from the external input it is possible to connect strain gauges sensors with output in mV/V such as: load cells, force transducers, pressure transducers, torque and displacement transducers. Internally the microcontroller process the signals coming from the sensors through a 24 bit (±50.000 divisions at 2mV/V) analogue digital converter at a conversion frequency varying from 5Hz at 4800Hz by making it suitable for every application that may require both high resolution and high sampling frequencies. The display of measurements happens through a big graphic backlighted display. Star is equipped with USB interface that allows both the communication in real-time with a PC and the recharge of the internal long-lasting and great reliability battery (Li-Ion). In addition to the direct reading of the measurements, it is possible to detect PEAKS, block the measurement on the display thanks to the HOLD function and through the internal DATA LOGGER it is possible to record up to 130.000 measurement at programmed intervals or manually through the REC button.
