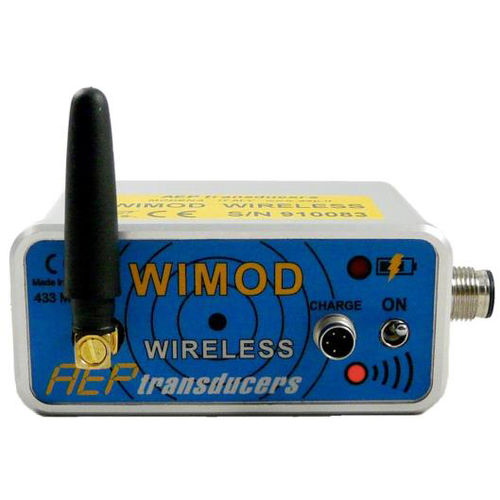

Wireless transmitter WIMOD series

radio data transmissiondata

The WIMOD wireless transmitter is a radio module that used on different models of LOAD CELLS, FORCE, PRESSURE, TORQUE, DISPLACEMENT transducers with 2mV/V standard output. The system allows to interface up to 32 WIMOD to a single control PC or connect up to 4 WIMOD to WISTAR handheld or a MP2plus panel indicator. The module, powered by an internal rechargeable battery, provides an autonomy of ~1000 hours, covering a maximum distance of ~200 m in free air. The transmission frequency is 433 MHz. This makes secure and reliable the communication even in the presence of other transmission systems such as mobile phones, walky talky, radio microphones, remote controls etc. that normally work on different frequencies. Because of its extreme ease of installation the system is used in various applications such as weighing and balancing of plant, machinery, boats. Real-time monitoring of the distribution of loads suspended on metal structures used for stage lighting and plant engineering. Much used in applications where it is necessary to frequently change the position and the number of sensors to be used each time. The WIOMO can be applied directly on the sensor body or simply connected to the end of the cable (stand alone).
