Finned tube heat exchanger Aeromix®

air/airaluminumair-cooled

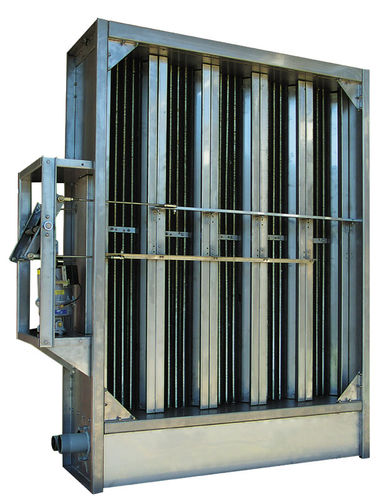

Aerofin’s Aeromix® coils feature Face and Bypass design. Because the leaving air temperature from the Aeromix® is controlled by directing the airflow across or around the finned tubes, modulation of the steam or fluid is not necessary. This feature maintains adequate steam pressure or fluid velocity for prevention of freeze-up. The Aeromix® provides even air temperature and constant air volume with minimal temperature override. Typical applications include HVAC air preheat, institutional air make-up and roof-mounted penthouse make-up air. This coil type falls within the scope of ARI Standard 410 Certified Ratings. There are two distinct Aeromix® coil types available, most easily differentiated by the tube orientation. The vertical tube Aeromix® is a copper spiral fin design used in larger face area applications, up to 88 square feet. The smaller horizontal tube coil is an aluminum plate fin design used in applications up to 24 square feet in face area.
