- Compression load cell
- Aerospace Southocean(Zhejiang)Science And Technolo

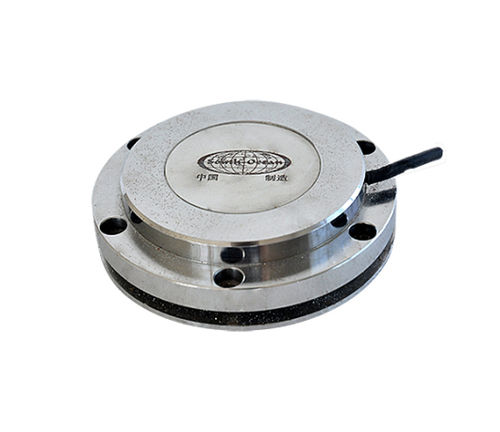

Compression load cell GY Seriesbutton typestainless steelIP68
Add to favorites
Compare this product
Characteristics
- Type
- compression
- Form
- button type
- Other characteristics
- stainless steel, IP68, IP67
- Rated load
Min.: 0.5 t
(0.55 us ton)Max.: 470 t
(518.09 us ton)
Description
Low profile load cell,stainless steel,strong side force resistance, welded seal,IP 68 Ideal for various hostile environment. Suitable for various measures equipments.
Rated Output(mV/V) 2.00±0.005
Nonlinearity ±0.05%FS
Hysteresis ±0.05%FS
Repeatability ±0.02%FS
Creep(30 minutes) ±0.02%FS
Zero Balance ±1.00%FS
Temperature Effect on Zero ±0.02%FS/10℃
Temperature Effect on Output ±0.02%FS/10℃
Input Resistance(Ω) 760±10
Output Resistance(Ω) 700±5
Insulation Resistance ≥5000MΩ
Excitation Voltage 10V(DC/AC)
Compensated Temperature Range -10℃~+50℃
Operating Temperature Range -20℃~+60℃
Safe Overload 120%FS
Cable Φ5.4×6m
Cable Color Code Input:Red(+) Black(-)
Output:Green(+) White(-)
