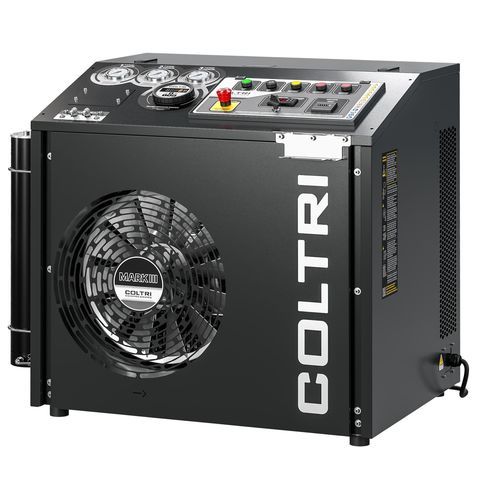

Piston compressor Mark III Silent TPS

breathing airelectrically-poweredstationary

Ideal for intensive use in hot, poorly ventilated environments or in tropical countries. Designed with an improved cooling system and a filtering system with two Hyperfilters, these compressors are powered by an electric motor and equipped with four different pumping units, all in the TPS (Tropical Plus Superdry) version. They are available with function monitoring systems and electrical panel for automatic compressor shutdown. Monobloc in aluminum, Gooseneck in forged steel Forced lubrication on 2nd and 3rd stage cylinders by gear pump Oversized interstage cooling pipes Forged aluminum connecting rods Main roller bearings Roller connecting rod bearings 1st and 2nd stage cylinders in aluminum with hard nicasil coating 2nd and 3rd stage slide guide cylinders in aluminum with hard nicasil coating 3rd stage cylinder in special treated steel. Stainless steel intake and exhaust valves Interstage cooling pipes in stainless steel Separator after the 2nd and 3rd stage Safety valves after each stage Prepared for Hyperfilter filter system Oil filtration Double final separator Placed after the last compressor separator and before the pressure holding valve, the Hyperfilter purification system enables reliable treatment of the breathing air according to DIN EN 12021¹ when using original filter artridges. The separator present between the 2nd and 3rd stage of the purification circuit allows to extract the greatest possible humidity. The filtering capacity with inlet air at 20 ° C and 200 bar is 4300 m³.
