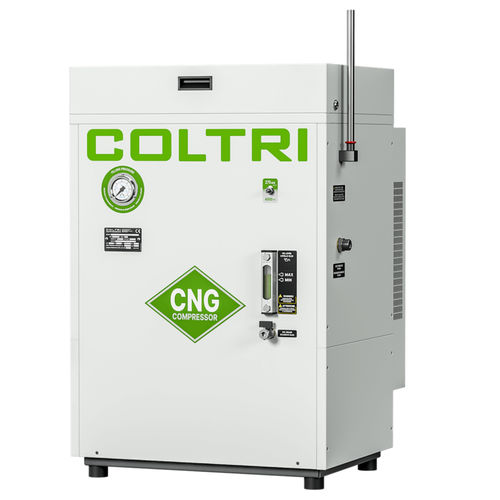

Piston compressor CNG Booster RC

natural gaselectrically-poweredstationary

Designed to compress previously treated and filtered natural gas and biomethane with a suction pressure between 2 and 8 bar and a final pressure of up to 250 bar. Robust and compact, created to fill cylinders for gas storage. The use of the products of the CNG BOOSTER RC line is easy and can be done in total safety. The equipment includes a remote electromechanical panel with 5 meters of cable for control and automatic stop function when the tank is full. Monobloc in aluminum Gooseneck in forged steel Splash lubrication Forged aluminum connecting rods Main roller bearings Roller connecting rod bearings 1st and 2nd stage cylinders in aluminum with hard nicasil coating 2nd and 3rd stage slide guide cylinders in aluminum with hard nicasil coating 3rd stage cylinder in special treated steel. Stainless steel intake and exhaust valves Interstage cooling pipes in stainless steel Safety valves after each stage Oil level sensor Coltri CNG compressors put safety first: they are equipped with sensors that stop the machine in case of leaks; and are equipped with inlet and outlet solenoid valves to regulate the operation of the machine and the system. Input filter Hitch-hiking Maxifilter filter system Ventilation tube Low pressure switch at the gas inlet Frame color RAL 7035
