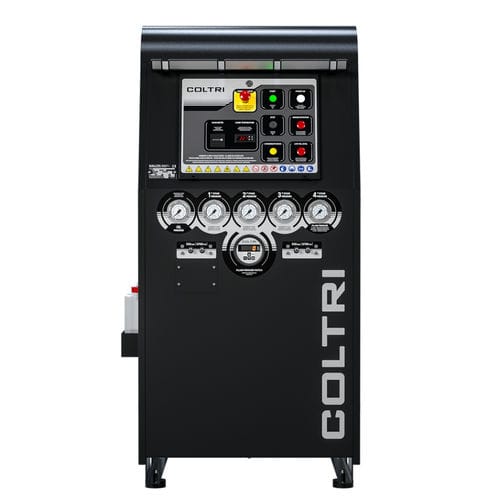

Piston compressor Silent

breathing airelectrically-poweredstationary

Silent reaches new heights in terms of soundproofing, allowing you to drop below the threshold of 70 dB in operation. Built to meet the needs of intensive use and when large refill capacities are required, it is equipped with 4 front filling connections with high pressure hoses and an intuitive control panel. It is also equipped with an electric motor and powerful pumping units. For longer filter life, the Tornado high pressure dryer is recommended. Available as optional: the Presec system for filter saturation control or the SAM system for multigas analysis and remote charging panel. Monobloc in aluminum, Gooseneck in forged steel forced lubrication on the 4th stage cylinder by gear pump Oil filtration Aluminum connecting rods Main roller bearings Roller connecting rod bearings 1st, 2nd and 3rd stage cylinders in special cast iron 4th stage cylinder in special treated steel. Stainless steel intake and exhaust valves Interstage cooling pipes in stainless steel Separator after the 2nd, 3rd and 4th stage Safety valves after each stage Oil level sensor Prepared for Hyperfilter filter system ON / OFF switch with motor protection switch. Digital electronic pressure switch that stops the compressor at the final pressure. Drainage of all separators between the individual stages and also of the final separator during compressor operation Timer for automatic condensate drain. Integrated no-load start (automatic drain every time the unit is switched off). 5 liter condensate collection tank, with silencer; capacity of about 3 liters, for the ecological disposal of condensate.
