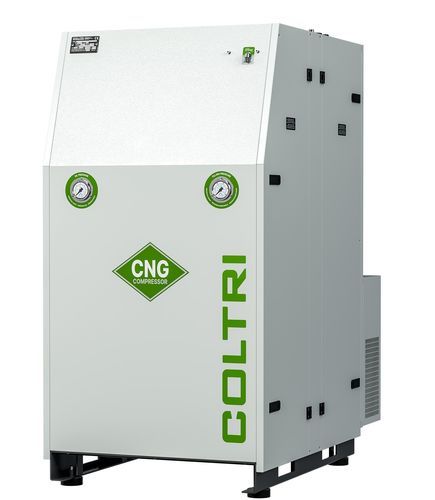

Piston compressor CNG HD RC

natural gaselectrically-poweredstationary

Designed for medium-sized charging stations, the CNG HD series compressors can compress up to 250 bar of natural gas and biomethane previously treated and filtered from the supply line. Four compression stages and low rpm for a machine suitable for professional use. The remote control panel (5 meters of cable) provides all the indications to operate in maximum safety. The compressors are equipped with a 4.5 m high pressure hose and a NGV1 direct connection dispensing gun, suitable for refill pressures up to 250 bar. Monobloc in aluminum Gooseneck in forged steel Splash lubrication Forged aluminum connecting rods Main roller bearings Roller connecting rod bearings 1st and 2nd stage cylinders in aluminum with hard nicasil coating 2nd and 3rd stage slide guide cylinders in aluminum with hard nicasil coating 3rd stage cylinder in special treated steel. Stainless steel intake and exhaust valves Interstage cooling pipes in stainless steel Safety valves after each stage Oil level sensor Imagine having a compressor capable of great performance and endowed with extraordinary solidity. What would all this be without absolute simplicity in managing it? We believe that innovation is for this: to make everything simpler. Input filter Hitch-hiking Double PED certified Hyperfilter filter system with molecular sieve Natural gas refueling gun with direct action ngv1 4.5 m filling hose Low pressure switch at the gas inlet Methane gas detector Oil pump Frame color RAL 7035
