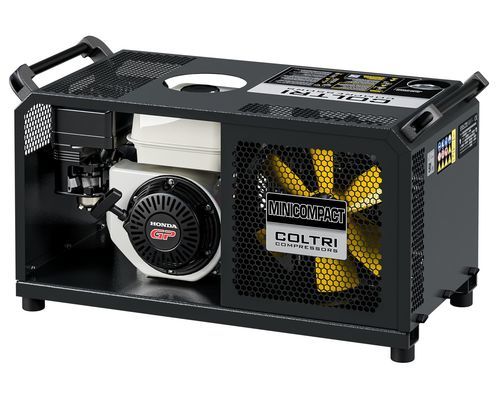

Piston compressor mini compact 100 ET
breathing airnitrogenhelium

piston compressor
piston compressor
Add to favorites
Compare this product


Characteristics

Technology
piston
Type
breathing air, nitrogen, helium
Power source
electrically-powered
Portability
portable
Lubrication
oil-lubricated
Application domain
for marine applications
Voltage
400 V, 230 V
Other characteristics
compact, direct-drive, high-performance, light, with integrated filtration
Pressure

230 bar, 330 bar
(3,335.87 psi, 4,786.25 psi)

Flow

100 l/min
(26.42 us gal/min)

Power

3 kW
(4.08 hp)

Length

62 cm
(24 in)

Width

38 cm
(15 in)

Height

43 cm
(17 in)

Weight

47 kg
(103.6 lb)

Description

Available with an electric motor, the new Mini Compact is the most widely used portable compressor in the world By taking weight off the electric motor and reducing the size, Mini Compact has been able to enhance the concept of “portable.” Of course without making you give up its excellent performance. Imagine having a compressor capable of great performance and endowed with extraordinary solidity. What would all this be without absolute simplicity in managing it? We believe that innovation is for this: to make everything simpler. The Mini Compact series models meet the high-pressure breathing air needs of the diving, firefighting and paintball worlds. Add what you want: pressure maintenance valve, automatic condensate drain, autostop or C-Monitor. Standard equipment 1 cylinder connection to be chosen from DIN 232, DIN 300, INT / YOKE 232 bar 1 filling hose 1.2m long Hour counter (only for single-phase electric motors) Frame color Black RAL 9005
