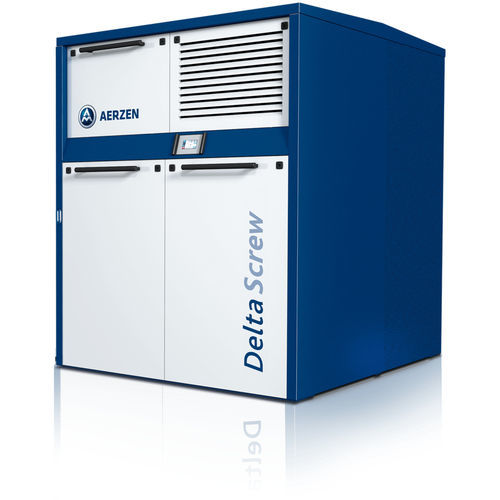

Screw compressor VML 18 R-G5
airgaselectric

Screw compressor - VML 18 R-G5	 - Aerzener Maschinenfabrik GmbH - air / gas / electric
Screw compressor - VML 18 R-G5	 - Aerzener Maschinenfabrik GmbH - air / gas / electric
Screw compressor - VML 18 R-G5	 - Aerzener Maschinenfabrik GmbH - air / gas / electric - image - 2
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air, gas
Power source
electric
Portability
stationary
Lubrication
oil-free
Application domain
for the petrochemical industry
Applications
process, sewage
Other characteristics
single-stage, modular, positive pressure, belt-drive, negative pressure
Pressure

Min.: -850 mbar
(-12.33 psi)

Max.: 3,500 mbar
(50.76 psi)

Flow

Min.: 120 m³/h
(4,237.76 ft³/h)

Max.: 2,650 m³/h
(93,583.87 ft³/h)

Power

Min.: 37 kW
(50.31 hp)

Max.: 200 kW
(271.92 hp)

Width

1,250 mm, 1,500 mm, 1,700 mm
(49 in, 59 in, 67 in)

Height

1,776 mm, 1,847 mm, 1,973 mm, 2,111 mm
(70 in, 73 in, 78 in, 83 in)

Weight

Min.: 840 kg
(1,851.9 lb)

Max.: 2,100 kg
(4,629.7 lb)

Noise level

74 dB, 76 dB, 77 dB, 80 dB

Description

The single-stage, oil-free screw compressors in the Delta Screw Generation 5plus series are universal machines. They bundle all the know-how of a world market leader in compressor technology to offer you ‘the user’ maximum efficiency. The advantages of AERZEN Belt Driven Screw Compressors at a glance: Extensive range of special accessories and various options Lowest sound pressure levels due to the perfect interaction of silencer and acoustic hood Fully integrated compressor package with air end, filter, silencer, noise enclosure and drive train Reflective silencer, free of absorption material Engineering and assembly completely in Aerzen, Germany Increasing flexibility – profitability starts when compressor systems are tailored to the process. Leading companies in industries ranging from petrochemicals to cement have been relying on AERZEN for decades, and for good reason: The Delta Screw series is unrivalled in the assortment and flexibility of available models and how they can be adapted to a wide range of customer requirements. The Delta Screw Generation 5 plus series has set a whole new standard. The new benchmark class of dry-running screw compressors. Wide range of applications in both indoor and outdoor installations Conveyance or compression of inert gases Pneumatic air or nitrogen transport of powders, bulk solids, ash, etc. Aeration of sewage tanks Blending of cement Vacuum forming for the glass industry Keeping waterways and ports ice-free Creating oil barriers Gas-air mixing installations Oxidation air for power plants Stationary unloading of tanker trucks Vacuum production for the paper industry Forced air for spun-bonded olefin production
