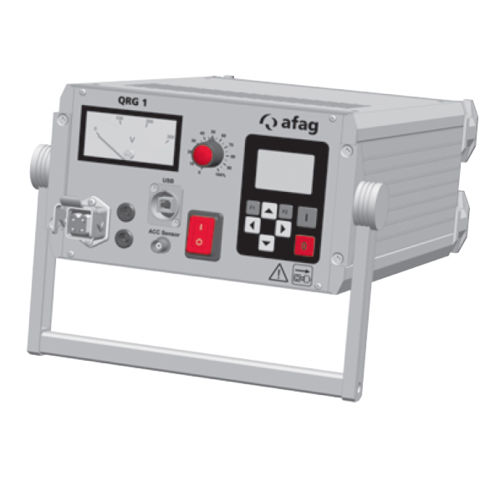

Vibration measuring instrument QRG-1

laboratory

Laboratory instrument QRG-1 •Innovative laboratory measuring instrument for Afag vibration conveyors Order number50390535 Sensor supply14 mA Output frequency5 - 300 Hz Frequency50/60 Hz Output voltage0 -105/0 - 205 V Frequency of the power part50/60 Hz Frequency of the measurement range6 - 600 Hz Net weight5.5 kg Actual values sensor10/100/500 mV/g Deflection0-30 mm Measuring range0.2-150 g Measuring error1.5% Nominal output current8 A Accelerometer QRG-1 Order number50399733 Net weight0.1 kg
