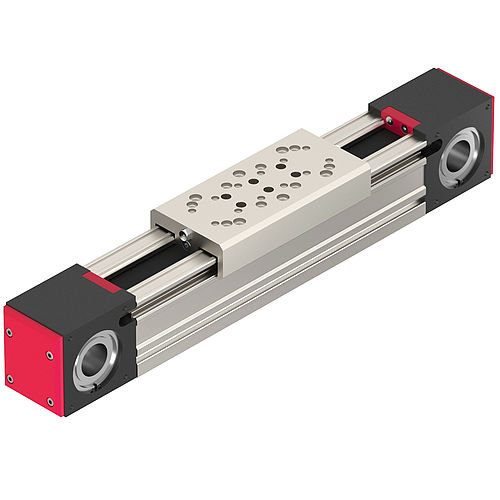

Electric linear axis PEZ, PDZ, PEL, PDL series

compact

Portal axes PEZ-52 •The most rigid portal axes •Single or double guide •Fully symmetrical Portal axes PEZ-65 •The most rigid portal axes •Single or double guide •Fully symmetrical Portal axes PEZ-80 •The most rigid portal axes •Single or double guide •Fully symmetrical Potal axes PEZ-100 •The most rigid portal axes •Single or double guide •Fully symmetrical Portal axes PDZ-128 •The most rigid portal axes •Single or double guide •Fully symmetrical Portal axis PDZ-160 •The most rigid portal axes •Single or double guide •Fully symmetrical Portal axes PDZ-200 •The most rigid portal axes •Single or double guide •Fully symmetrical Portal axes PEL20-SL •Compact, simple portal axis •Maximum stroke at minimum installation space •Cost-efficient entry into linear motor technology Portal axes PEL20 •Compact axis for higher masses •High flexibility from comprehensive drilling pattern •Long service life from direct drive Portal axes PDL30 •High torsion stiffness from double guide •Ideal for area booms •Robust design for long service life Portal axes PDL40 •Force package with high dynamics •For the faster applications •High performance from compact build Portal axes PDL40-HP •Force package for highest demands •Up to 1000 N peak force •High force and dynamics even at high masses
