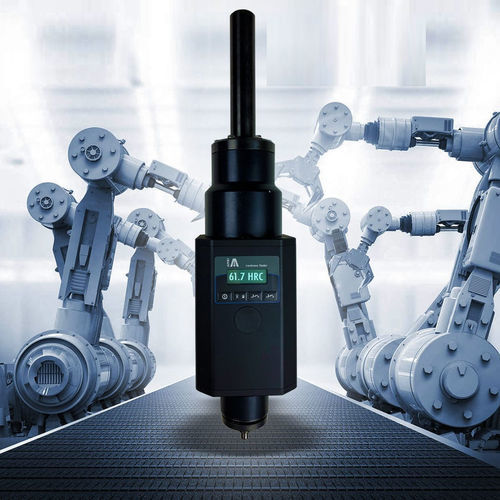

Explorer is a reliable and precise hardness tester, with a new design and user friendliness. It allows to make quick and precise measurements. The instrument is applied to the working centres and handled just like a standard tool. Different types of coupling are available ISO, DIN 30,40,50 and more on demand.
Explorer transfers the data concerning the test just carried out thanks to a Wireless connection via standard Bluetooth. Data transfer is guaranteed up to 30 meters (even if without net noises it is possible to transfer beyond 100 meters). This allows to place the support PC even far from the instrument for better ergonomics of the working place.
Test loads
2 – 5,6 kgf (19,614 – 54,92 N)
From 3 to 187,5 kgf (From 29,42 to 1839 N) – As optional 250 kgf (2452 N)
Rockwell and superficial Rockwell ISO 6508 / ASTM E-18
HRA – HRB – HRC – HRD – HRF – HRG – HRL – HRM – HRR / HRN – HRT
Brinell HBWT ASTM E-103 / SO 6506
1/30 – 1/10 – 2.5/15.6 – 2.5/31.5 – 2.5/62.5 – 2.5/187.5 – 5/125
