Modular conveyor belt E30 series

perforatedpolypropyleneindustrial

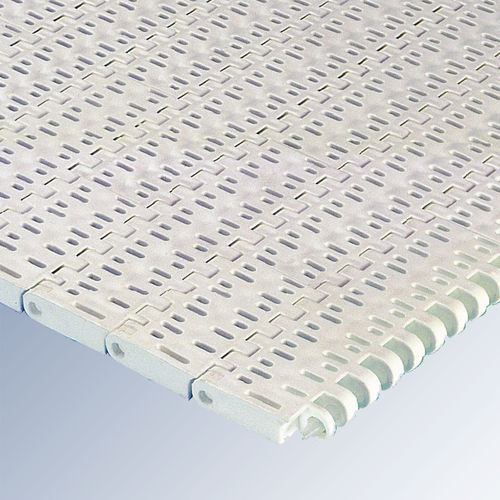

Pitch = 30 mm Open area = 17% Thickness = 10 mm Rod diameter = Ø 4.6 mm Eurobelt Series E30 Perforated Flat Top has a 17% open area, a completely smooth surface, and grille-shaped small straight holes without structural obstacles. This is the suitable conveyor belt for those applications in which drainage through the belt is desired and the product to be conveyed is small. The dimensions of the holes, in millimetres, are: [2 x 5] and [2 x 8].
