Mattress geotextile ALVEODRAIN P5

polypropylenefor constructiondrainage

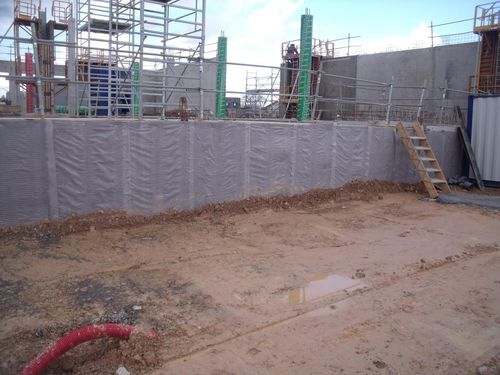

When building structures, there is a risk of run-off water stagnation when in contact with the walls, which may jeopardise the longevity of buildings. This is why the foundations should be protected with a drainage and water barrier system. Consisting of a filtering geotextile, a draining geotextile and an impermeable film, ALVÉODRAIN® P5 simultaneously provides buried walls with protection, drainage and a water barrier (car park, residential basements, business premises, retaining walls, etc.). Run-off water is discharged into a collector drain at the bottom of the wall. • 45% installation time saved • Drainage, mechanical protection and water barrier in a single product = one installation • Very flexible, light product, making installation easier in corners • No drying time • Carbon footprint reduction • Economical : does not require drainage materials at the bottom • Installed on any substrate, horizontally and vertically • No uprooting when backfilled • Polypropylene geocomposite • Roll width : 1.10 m • Roll length : 37 m • Roll weight : 33 kg • Maximum construction height : 6 m • Output : 220 m2 installed per day by 2 people
