Needle-punched non-woven geotextile DRAINTUBE ACB

PPfor drainagewith mini-drains

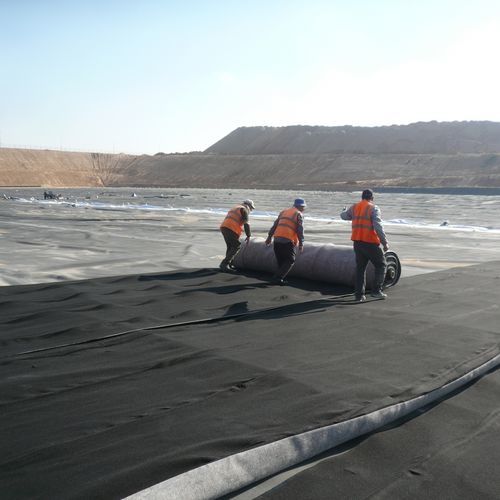

To protect the groundwater table from the ingress of contaminated leachate, a waterproofing system is installed during the construction or extension of landfills. The next step is to use a drainage solution by DRAINTUBE® ACB to protect the geomembrane at the bottom of the cell and drain leachate towards a collector drain. This geocomposite features a patented filter with Anti Biological Clogging (ABC) treatment to limit bacterial growth and guarantee drainage efficiency. Compared with a traditional solution, DRAINTUBE® ACB replaces the puncture-resistant geotextile placed on the geomembrane, 20 cm from drainage materials. Connection to the collector via the Quick Connect system The Quick Connect system directly connects the mini-drains from the DRAINTUBE® ACB to the main collector drain. In the event of gas drainage, it generates negative pressure in the entire system. • Quickly drains leachate from the bottom of the cell • Protects the geomembrane against puncture • Cost-effective and environmentally friendly solution avoiding the use of granular drainage materials • Increased storage capacity of the cell • Stability tested under extreme conditions
