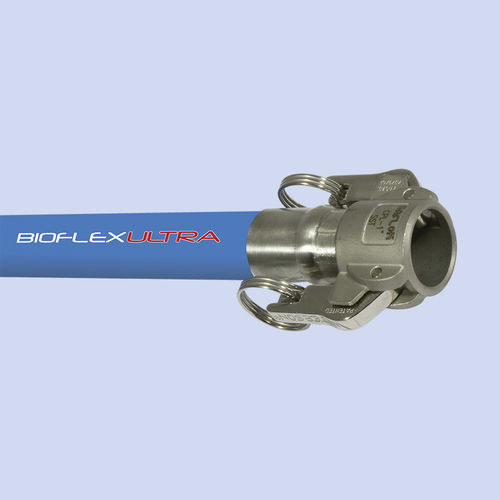

Hydraulic fitting

camlockstainless steelfemale

End Fitting Specifications Generally in accordance with A-A-59326 (replaces MIL-C-27487) and EN14420-1 (replaces DIN 2828), and all are fully interchangeable. End Fitting Materials Spigot in Grade 316L SS Body in Grade 316C SS Ferrules, most in Grade 304 SS, some sizes in Grade 316L SS Standard Gasket is Buna N (Nitrile) Rubber. FEP encapsulated Silicone Rubber Gaskets also available. Surface Finish: (Non-Lined Fittings only) All surface finishes are to ASME BPE-SF-O (No finish required). If a specified finish on a particular surface is required, please state on the enquiry and order. Temperature and Pressure Ratings When used with a Buna N Gasket all sizes up to 16 Bar (230 psi) and up to a maximum temperature of 65˚C (149˚F) When used with FEP, Fluoro Rubber or other encapsulated gaskets all sizes up to 10 Bar (145 psi) and up to a maximum temperature of 204˚C (400˚F). 90˚Elbow Cam & Groove Fittings (PTFE Lined Only) 90˚ Elbow Integral PTFE lined Cam & Groove Fittings are available for sizes 1”, 11/2” and 2” - see 90˚ Elbow Fittings. Notes: For Integral PTFE Lined Fittings Only FEP Gaskets require higher clamping forces to flatten the Seal and make the joint. This is made easier by “pre-setting” these gaskets by clamping Polypropylene Cam Male Inserts to the assembled fittings, which must then be kept in place during storage, until use. Any Customer’s Own “Special” Gaskets must be pre-supplied to Aflex for special assembly and testing of hose assemblies, to ensure suitability.
